Save Your 3.0 TDI Engine from Seizure

Seized Crankshaft

Seized Crankshaft? Act Now!

If you own a Volkswagen or Audi with a 3.0 TDI engine produced after 2013, you're driving with a ticking time bomb under the hood!

The culprit? Low oil pressure.

Fix it before your engine seizes!

Low oil pressure is the leading cause of engine failure in third-generation 3.0 TDI engines.

This reduced oil pressure is a common issue in all Volkswagen and Audi models equipped with the EA897evo 3.0 TDI V6 engine, including:

  • Volkswagen: Touareg, Amarok
  • Audi: A4, A5, A6, A7, A8, Q5, Q7, Q8

This problem affects hundreds of thousands of VW and Audi vehicles manufactured after 2013.

Why Is This So Dangerous?

Apart from low oil pressure, another major issue is the delayed low oil pressure warning.

The warning “TURN OFF ENGINE” only appears when pressure drops below 0.6 bar—by then, it’s already too late to save your engine from catastrophic failure.

We Can Fix It & Save Your Engine!

Prevent engine failure due to oil starvation by correcting the oil pressure settings in the ECU.

Know the Causes – Prevent Engine Failure!

We strongly recommend learning about all the causes of 3.0 TDI engine failure to protect your vehicle. Understand the root causes of CRT engine failures – before it’s too late! 🚗💨

Low Oil Pressure

Oil Pressure Control

Why Was Oil Pressure Reduced?

The reduction of oil pressure at low engine speeds was intended to lower the energy required to maintain that pressure. The method used to achieve this was the introduction of a variable-displacement oil pump, controlled by the engine’s ECU.

By reducing the power needed to drive the oil pump, manufacturers aimed to improve fuel efficiency and emissions.

The entire system was implemented to meet EURO 6 emissions standards.

How Does It Work?

The engine control unit (ECU) receives data from the oil pressure sensor and adjusts an electro-hydraulic valve to regulate oil pressure. This ensures the pressure aligns with the predefined map, which considers factors such as engine speed and oil temperature.

But here’s the problem—if the oil pressure drops too low, the engine and turbocharger suffer irreversible damage.

That should be obvious to anyone familiar with engine mechanics.

The Reality: Engine Failure at Low Mileage

Our workshop regularly sees Volkswagen and Audi 3.0 TDI vehicles equipped with these variable-output oil pumps—many of which suffer from seized engines after just tens of thousands of kilometers!

In many cases, the damage is so severe that repairing the engine is simply not cost-effective.

Increase Oil Pressure Before It’s Too Late!

If you own an Audi or Volkswagen 3.0 TDI produced after 2013, your vehicle most likely has the EA897evo engine—equipped with a variable-displacement oil pump and reduced engine oil pressure.

Check Your Engine Type

Make sure your vehicle has this engine:

  • Look for the engine code on the sticker inside your car.
  • Or simply send us your VIN, and we’ll check it for you.

If you have the EA897evo engine and the oil pressure settings have never been adjusted, your engine is at serious risk of seizure due to low oil pressure.

Adjusting the oil pressure settings can extend your engine’s lifespan and prevent catastrophic failure.

Check Your Engine’s Oil Pressure!

You can read the oil pressure using any diagnostic scanner.

📽 Watch our video to see exactly how to do it! Click the link and follow the step-by-step guide.

We Adjust Oil Pressure While You Wait! The process takes about 30 minutes.

In the video, we show you exactly how we do it.

By increasing the oil pressure, you’ll save your engine from seizure and avoid massive repair costs.

What Is the Oil Pressure in EA897evo Engines?

 Engine Oil Pressure Curve
Oil Pressure Curve

The graphs below show how oil pressure increases as engine RPM rises.

  • Horizontal axis: Engine speed (RPM)
  • Vertical axis: Oil pressure (Bar)

🔴 Red Line – Stock Audi (2016) – No Oil Pressure Modification

This represents the oil pressure in a 2016 Audi with factory settings.

  • At idle and up to 2000 RPM, the oil pressure is only 1.0 Bar
  • At 2500 RPM, it barely reaches 1.25 Bar
  • The pressure only rises to 3.5 Bar after exceeding 2500 RPM

This low oil pressure puts the engine and turbocharger at serious risk of premature failure.

🟠 Orange Line – Stock Audi (2021) – Factory Update

This represents a 2021 Audi, where Audi engineers silently updated the oil pressure map—though they haven’t officially stated why.

  • Idle: 1.3 Bar
  • 1000 RPM: Slight increase in pressure
  • 2000 RPM: Nearly 2.0 Bar
  • 2500 RPM: Reaches 3.3 Bar

While the pressure is somewhat improved, it’s still not ideal for long-term engine protection.

🟢 Green Line – Oil Pressure After Our Modification

This shows oil pressure after our optimization, ensuring much better lubrication and engine protection.

  • Idle: 1.6 Bar (higher than stock settings)
  • 1500 RPM: Already at 2.4 Bar
  • 2000 RPM: 3.0 Bar
  • 2500 RPM: A solid 3.6 Bar

With these adjustments, your engine gets the oil pressure it actually needs, significantly reducing wear and the risk of catastrophic failure.

Increase Oil Pressure – Save Your Engine!

Don’t wait until it’s too late! CALL US NOW to book an appointment. By adjusting the oil pressure, you’ll prevent engine seizure and avoid massive repair costs.

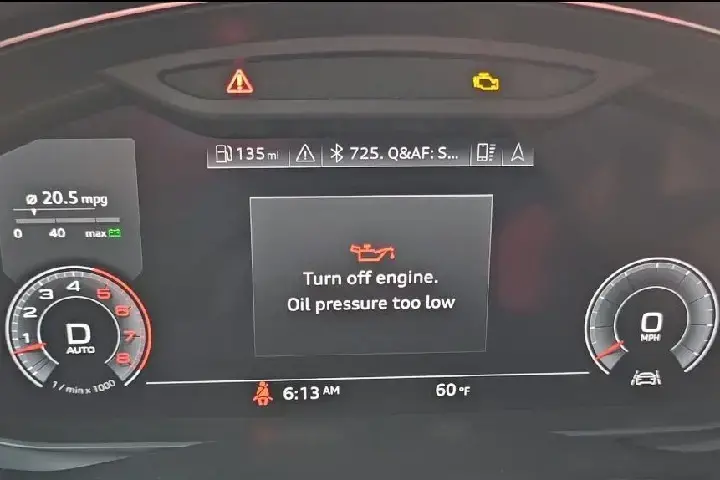

Low Oil Pressure Warning

Low Oil Pressure Warning

🚨 TURN OFF ENGINE. OIL PRESSURE TOO LOW. 🚨

This warning message should protect your engine from seizure—but only if you stop immediately and turn off the engine!

A low oil pressure warning is supposed to appear before the pressure drops to a dangerously low level, giving you enough time to prevent serious damage.

The Problem? The Warning Comes Too Late!

In most Audi 3.0 TDI (third-generation) vehicles, this warning doesn’t appear until oil pressure drops below 0.6 Bar.

⚠️ At this level, a V6 TDI engine’s crankshaft is already seizing!

The warning should appear much sooner to prevent irreversible engine damage.

Why Is This Happening?

In 3.0 TDI EA897evo engines, the low oil pressure warning is controlled by the ECU. The threshold for triggering this warning is programmed into the ECU itself.

Our Solution – Fixing What Others Don’t!

When we modify the oil pressure settings in Audi and Volkswagen 3.0 TDI engines, we also adjust the warning thresholds, ensuring that the system alerts you before it’s too late.

Other workshops don’t do this—but we do.

Increase Oil Pressure – Save Your Engine!

By raising the oil pressure and fixing the delayed warning system, you’ll prevent engine seizure and avoid massive repair costs.
